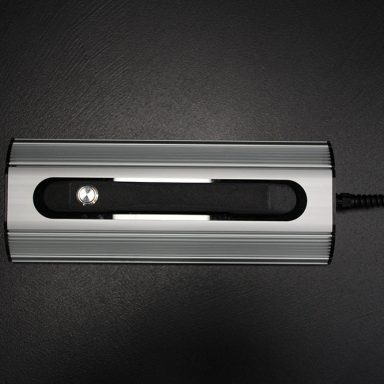

MANUAL LAMPS SERIES 1400 & 1402
Ideale per essiccare prodotti vernicianti su piccole superfici, utilizzo manuale o fisso tramite piantane.
Pannello da 400mm o 600mm, azionati con pulsante ON/OFF o con Timer 0 – 30 Minuti.
Product Features
CORPO LAMPADA
IN ALLUMINIO
Ele.Tec. S.r.l. has conceived, engineered, produced, and patented an extruded Silver Anodized Aluminum profile which it uses on its Lamps, including models 1410 and 1412. The profile, in addition to serving as a support body for the various components of the lamp, allows for rapid heat dissipation. The fins were designed to generate rapid thermal exchange with the environment without allowing dust accumulation, in addition to giving the elements a modern and attractive design.
RESISTENZE AD
ALTA EFFICIENZA
Ele.Tec. S.r.l. has always aimed to guarantee maximum quality standards and efficiency for its equipment, by choosing latest-generation components that can always provide maximum performance, such as the type of emitter; in fact, compared to traditional emitters, Ele.Tec. S.r.l. installs high-efficiency resistors in its systems which allow the beam to be irradiated and concentrated only frontally, achieving an efficiency increase of over 150% and, for the same absorbed energy, a saving of 35%.

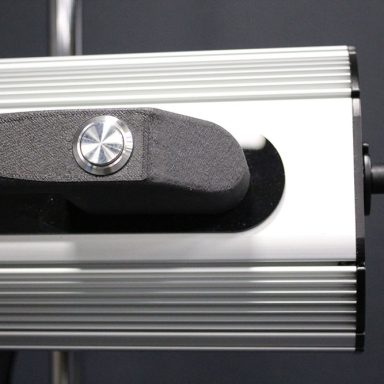

MANIGLIA
ERGONOMICA
Ele.Tec. S.r.l. ha anche in questo caso ideato ed ingegnerizzato una maniglia ergonomica che permette una presa facile e sicura dell’elemento, incorporando il pulsante ON/OFF o il TIMER, per un rapido intervento sull’apparecchiatura.
Technical Specifications
Power Supply Voltage
200-240 VAC 1F + N + PE – 50/60Hz
Power
1000W (IR_1410) / 1500W (IR_1412)
Tipo di Resistenza
Ad alta Efficienza
Lunghezza Pannello
400mm (IR_1410) / 600mm (IR_1412)
Curing Surface Area
500x300mm (IR_1410) / 700x300mm (IR_1412)
Comando
ON/OFF (Versioni C) / TIMER (Versioni (T)
Peso Corpo Lampada
2100g (IR_1410) / 2400g (IR_1412)
Operating Temperature
-10°C ÷ 40°C
